B1635N2B

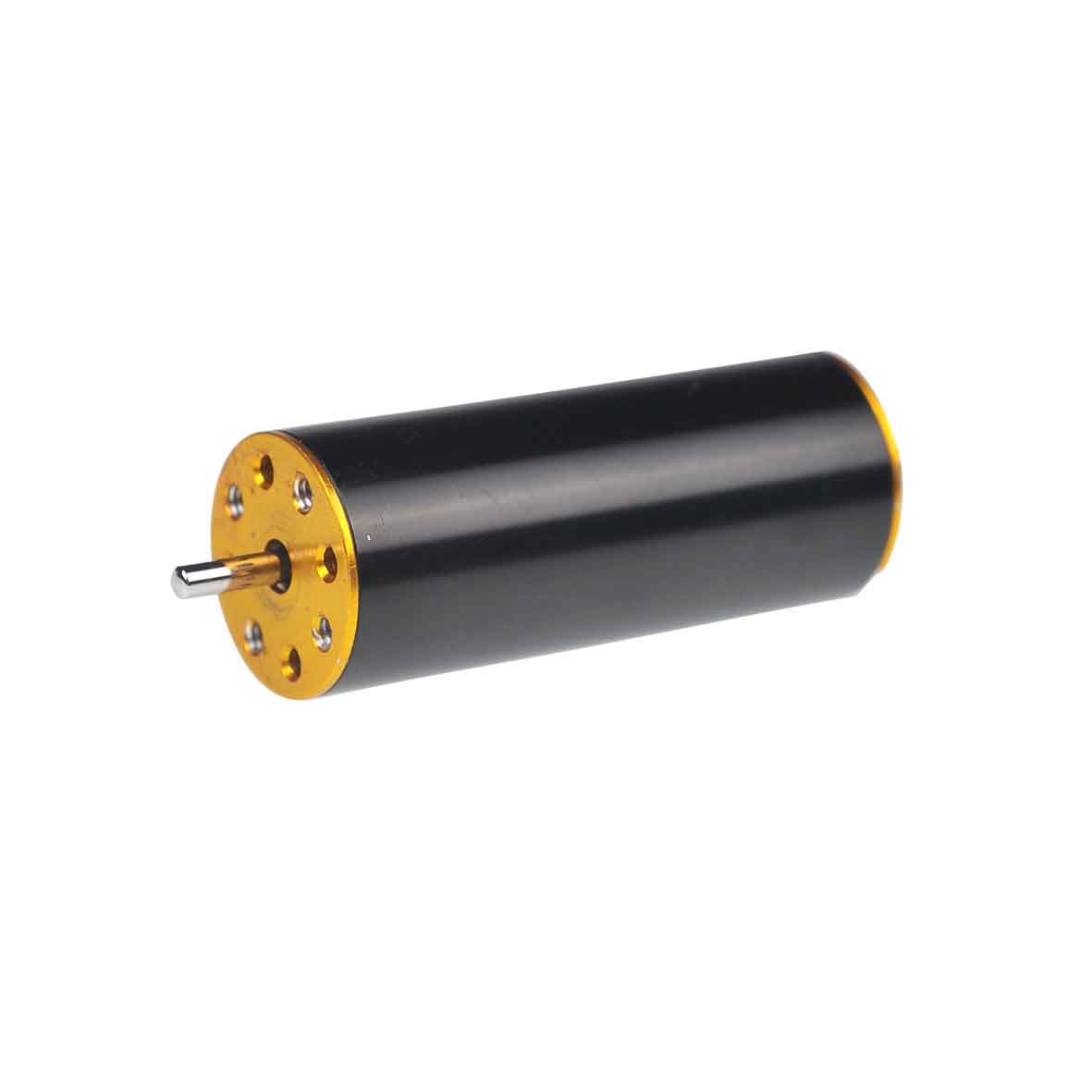

    12V High Speed Brushless DC Motor

    Diameter：16mm  Length：35mm  Voltage：12V Max. output power ：100W  Speed：45000rpm

    • Applications

       Medical Equipment、Industrial Automation

    • Options

       Lead wires length、Shaft length、Special coils、Gearheads、 Encoder、Driver

    • Unit Price

      Price upon request

Ask for datasheet Discuss customized products Ask for a quotation
Characteristics
  unit 01-450-12.0
Voltage V 12
Terminal resistance Ω 0.35
Terminal resistance rpm 45000
No-load current A 0.35
Stall torque mNm 85
Stall current A 34
Nominal torque mNm 1.5
Nominal speed rpm 43800
Nominal current A 0.96
Max. output power W 100
Max. efficiency % 81
Back-EMF constant mV/rpm 0.3
Torque constant mNm/A 2.5
KV Value rpm/V 3750
Speed/torque gradient rpm/mNm 530
Rotor inertia gcm2 1.5
Weight g 40
Recommend Similar Products

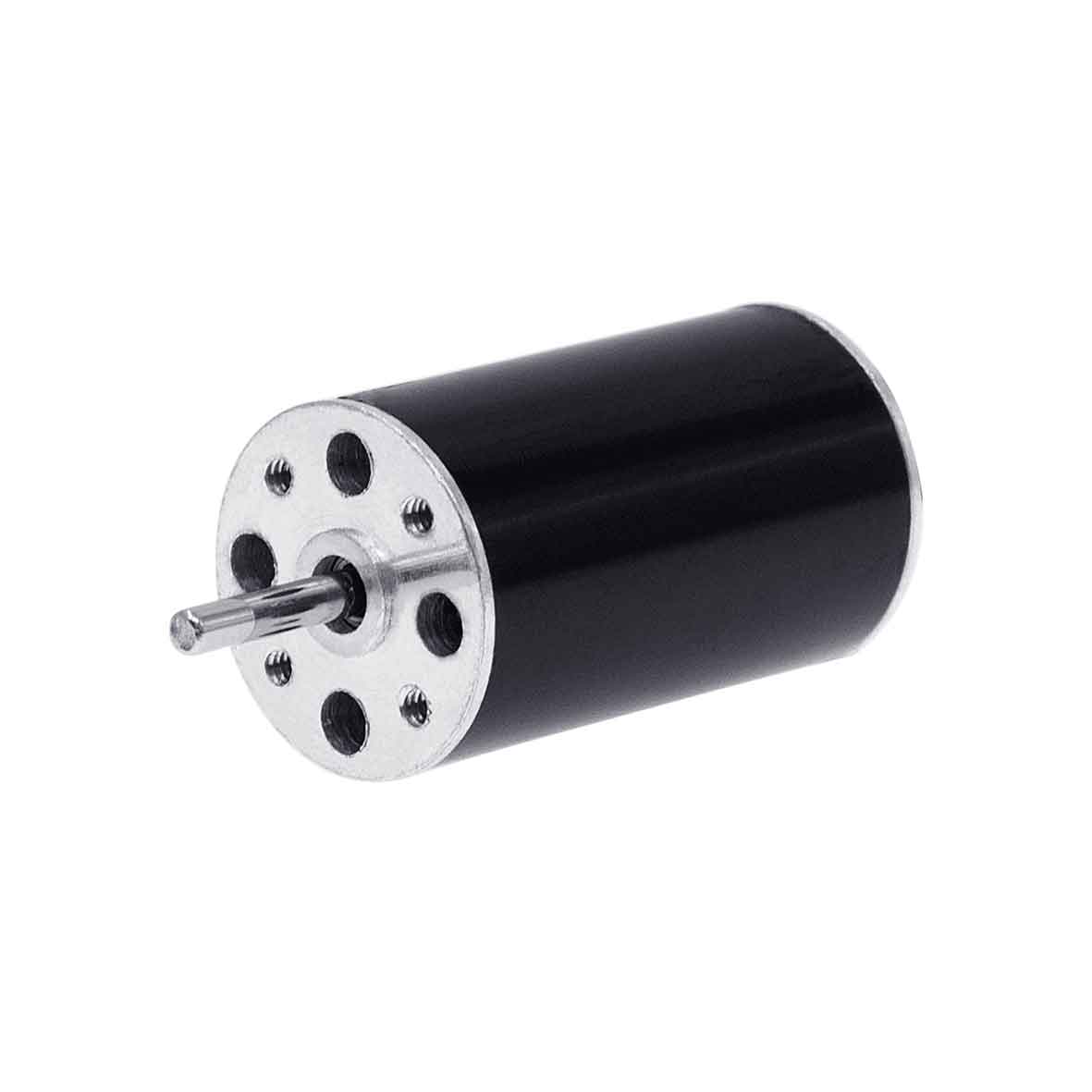

B1215N2B

Inner Rotor, Slotless

B1220N2B

Inner Rotor, Slotless

B1329N2B

Inner Rotor, Slotless
