0816N5M

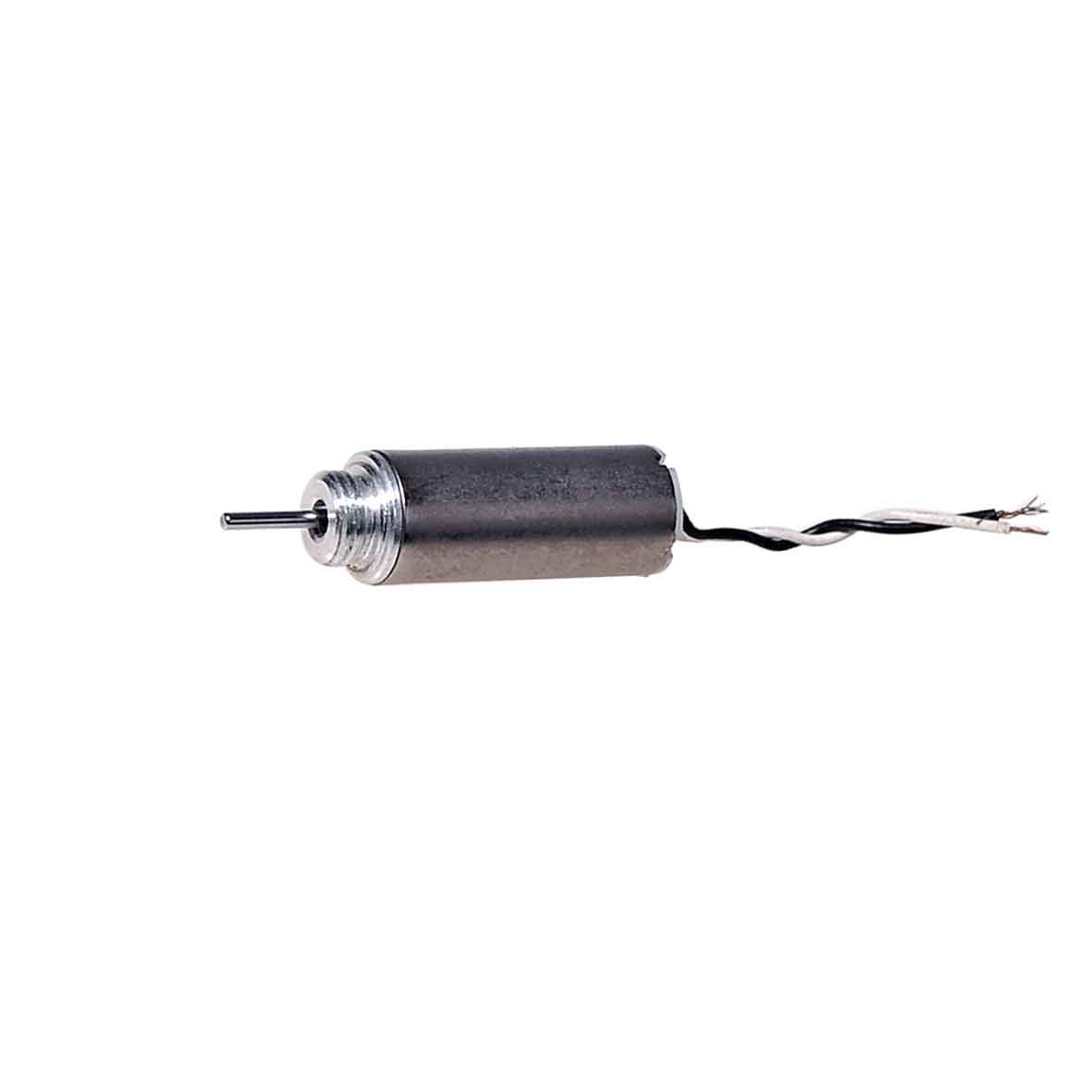

    8mm Micro DC Coreless Motor

    Diameter：8mm  Length ：16mm  Voltage：4.2V 、6V、8V  Max. Output Power ：0.3W  Speed：13700-15500rpm

    • Applications

      Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation

    • Options

       Lead wires length、Shaft length、Special coils、Gearheads

    • Unit Price

      Price upon request

Ask for datasheet Discuss customized products Ask for a quotation
Characteristics
  unit 02-137-4.2 11-148-6.0 01-155-8.0
Voltage V 4.2 6.0 8.0
Terminal resistance Ω 13.5 25.3 60.0
No-load speed rpm 13700 14800 15500
No-load current mA 15 7 6
Stall torque mNm 0.82 0.88 0.58
Stall current mA 310 240 130
Nominal torque mNm 0.25 0.30 0.15
Nominal speed rpm 9530 9730 11520
Nominal current mA 100 90 40
Max. output power W 0.30 0.34 0.24
Max. efficiency % 61 69 62
Back-EMF constant mV/rpm 0.3 0.4 0.5
Torque constant mNm/A 2.8 3.8 4.7
Speed/torque gradient rpm/mNm 16700 16900 26600
Rotor inertia gcm2 0.04 0.04 0.04
Weight g 3.6 3.6 3.6
Recommend Similar Products

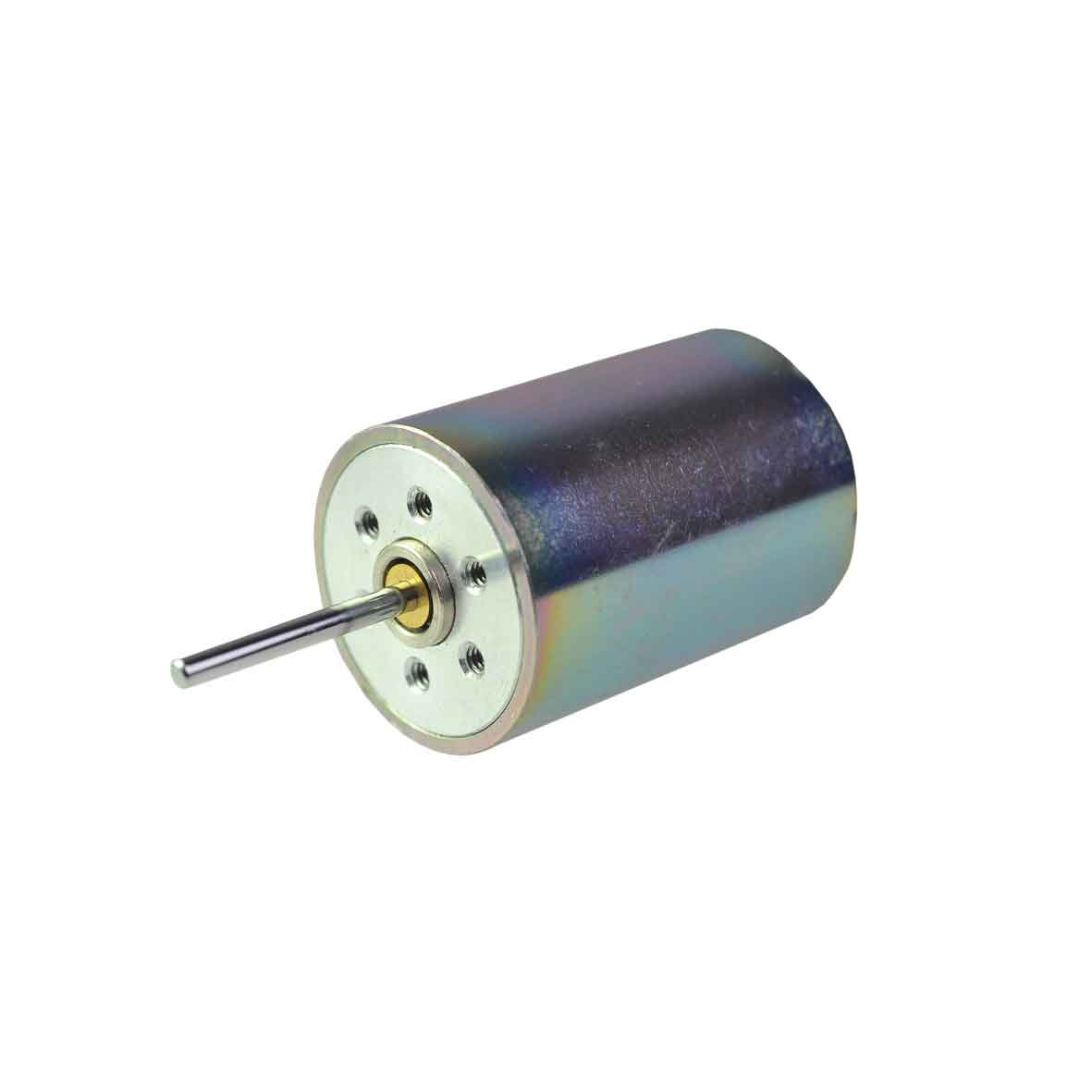

1331N5M
